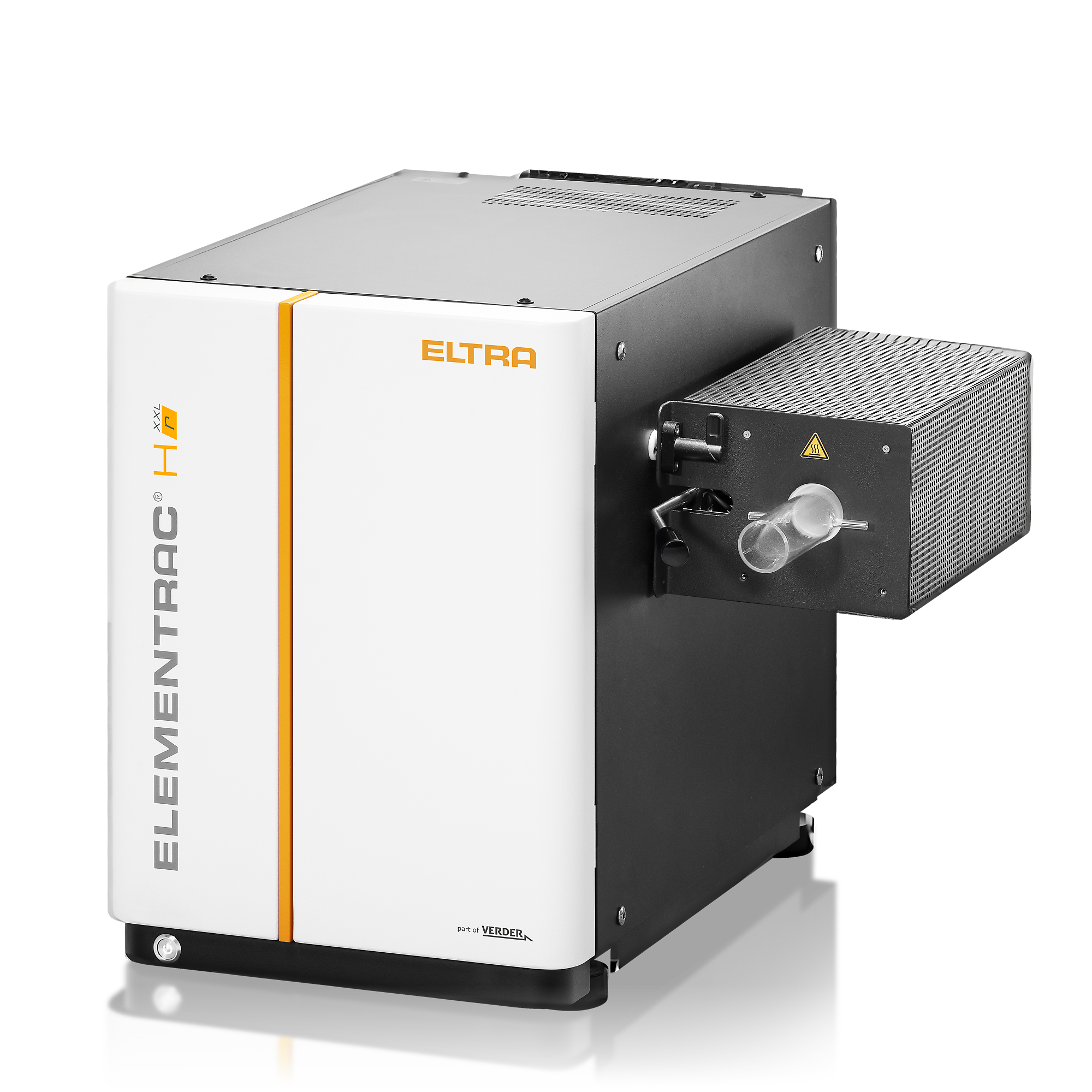

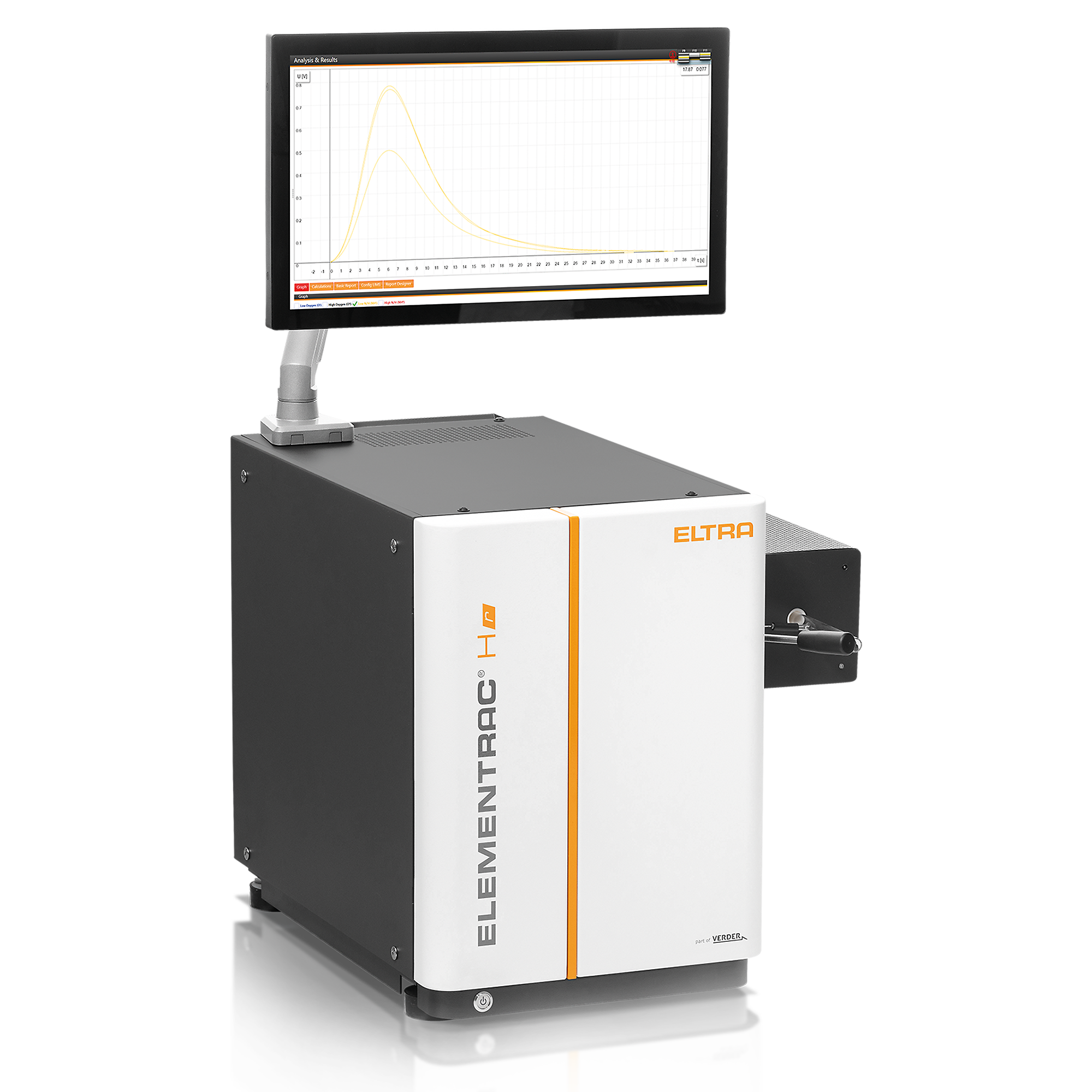

ELEMENTRAC H-r

(Please order PC, monitor, balance and consumables (starter-kit, anhydrone, sodium hydroxide, schuetze reagent) separately)

Measuring ranges at 1,000 mg sample weight
88200-4501
H-r (ID tube: 13 mm)
0.01 – 1,000 ppm H
88200-4500
H-r XXL (ID tube: 34 mm)

Required accessories

PC, Monitor, Balance

71015-1000
Computer with Intel Core i5-8400 Processor, 256 GB SSD; 8 GB RAM; Windows 10 operating system; keyboard; mouse
88400-0584
Monitor, TFT (23.8")
88400-0645
Balance (resolution 0.0001 g)

Required consumables / chemicals for first operations

90200
Anhydrone (magnesium perchlorate), 454 g
90210
Sodium hydroxide, 500 g
90270
Schuetze reagent, 100 g

Further options and consumables

Accessories (Hardware)

88200-9000
Carrier gas purification furnace, without filling (please order filling and quartz wool separately)
88400-0610
Barcode scanner
72080
Nitrogen regulator, 1 piece

Chemicals (fillings for glass and quartz tubes)

90200
Anhydrone (magnesium perchlorate), 454 g
90210
Sodium hydroxide, 500 g
90270
Schuetze reagent, 100 g
90426-1001
Filling for carrier gas purification furnace (suitable for one filling)
90332
Glass wool, 50 g
92610
Tube of high vacuum grease, 35 g

Spatulas, tweezers, spoons and tongs

88400-0229
Tweezers (160 mm), curved, 1 piece
88400-0472
Tweezers (145 mm), straight, 1 piece
88400-0475
Set with 6 spatula and 1 tweezers, for multiple weighing procedures

Tools for storage, transporting and weighing

36121
Quartz boat, 74 x 22 x 10 mm, 1 piece, for weighing pins
88400-0477
Weighing boat, 1 piece, for weighing and usage of granulates

Tools for maintenance

71010
Brush, 16 mm, 1 piece, for cleaning balance from dust
88400-0473
Powder funnel (plastics), 1 piece, for easy filling of chemical tubes
88400-0489
Rubber plug 14 x 20 x 24 mm, 1 piece, for sealing small glass tubes like 88400-0006
88400-0490
Rubber plug 29 x 35 x 30 mm, 1 piece, for sealing big glass tubes like 09090
88600-0027
Sodium hydroxide, Anhydrone filter tube

Calibration materials

Calibration materials may show slight variations depending on the current lot.
To see the current certification please visit www.ELTRA.com.

91110
Steel, 100 balls, gold plated, 1 g each, >1.9 ppm H
