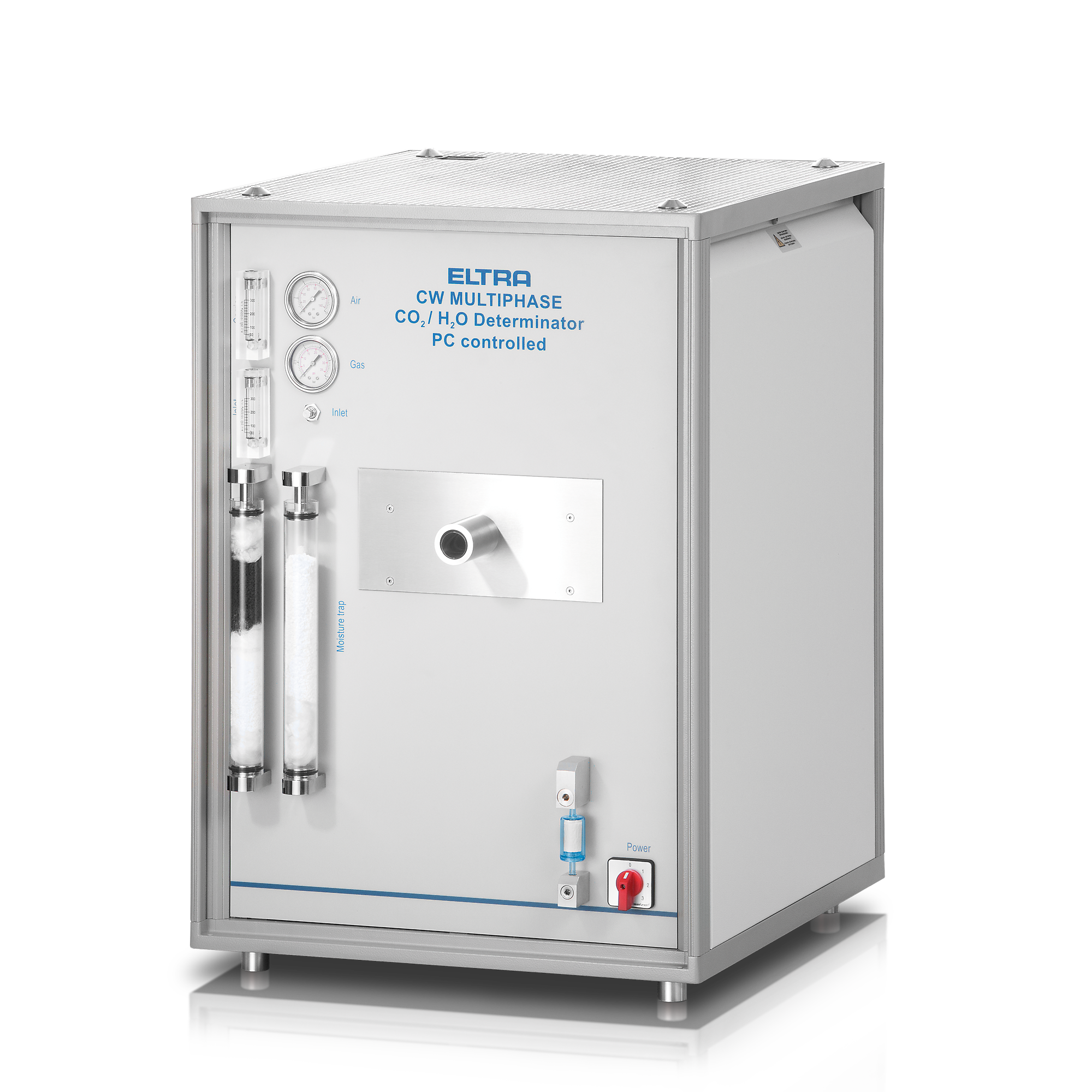

ELTRA CW-800M
(Please order PC, monitor, balance and consumables (starter-kit, anhydrone, sodium hydroxide, copper oxide) separately)
Measuring ranges at 200 mg sample weight
88100-4042
CW-800M
H2O
0 – 20 % H2O
88100-4041
CW-800M
1x CO2
0 – 70 % CO2 |
88100-4055
CW-800M
1x CO2
0 – 1 % CO2 |
Further measuring range combinations on request
Required accessories
PC, Monitor, Balance
71015-1000
Computer with Intel Core i5-8400 Processor, 256 GB SSD; 8 GB RAM; Windows 10 operating system; keyboard; mouse
88400-0584
Monitor, TFT (23.8")
88400-0645
Balance (resolution 0.0001 g)
Required consumables / chemicals for first operations
88500-0014
Starter-kit for 1000 analyses (1000 disposable porcelain boats, 3 quartz boats, 50 g glass wool, 50 g quartz wool)
90200
Anhydrone (magnesium perchlorate), 454 g
90210
Sodium hydroxide, 500 g
90289
Copper II oxide, 100 g
Further options and consumables
Accessories (Hardware)
88200-3800
TIC-Module
88400-0610
Barcode scanner
Chemicals (fillings for glass and quartz tubes)
90200
Anhydrone (magnesium perchlorate), 454 g
90210
Sodium hydroxide, 500 g
90289
Copper II oxide, 100 g
90330
Quartz wool, 50 g
90332
Glass wool, 50 g
90331
Glass wool, 454 g
92610
Tube of high vacuum grease, 35 g
90840
Quartz sand, 100 g
Boats
36120
Quartz boat, 75 x 16 x 7.5 mm, 1 piece
90160
Disposable porcelain boats 86 x 13 x 10 mm, 1000 pieces
88400-0502
Re-usable inconel boat, 54 x 18 x 13.5 mm, 1 piece
88400-0503
Re-usable inconel boat, 54 x 18 x 9 mm, 1 piece
Tools for operation: Spatulas, tweezers, tongs and other
36216
Combustion boat insertion stick, 1 piece
36217
Combustion boat removing stick, 380 mm, 1 piece
88400-0229
Tweezers (160 mm), curved, 1 piece
88400-0472
Tweezers (145 mm), straight, 1 piece
88400-0475
Set with 6 spatula and 1 tweezers, for multiple weighing procedures
88400-0477
Weighing boat, 1 piece, for weighing and usage of granulates
90145
Tongs for ceramic crucibles and boats, 220 mm, 1 piece
90146
Steel pot for preheated crucibles
Tools for maintenance
46300-8000
Maintenance kit CW-800M
71010
Brush, 16 mm, 1 piece, for cleaning balance from dust
88400-0473
Powder funnel (plastics), 1 piece, for easy filling of chemical tubes
88400-0490
Rubber plug 29 x 35 x 30 mm, 1 piece, for sealing big glass tubes like 09090
88600-0026
Rubber plug 29 x 35 x 30 mm, 1 piece, for sealing big glass tubes like 09090
Calibration materials
Calibration materials may show slight variations depending on the current lot.
To see the current certification please visit www.ELTRA.com.
Limestone
90812-3001
Limestone, 25 g, 0.04 % S; 12 % C
90812-3002
Limestone, 25 g, 0.4 % S; 12 % C
90812-3003
Limestone, 25 g, < 5 % C
90812-3004
Limestone, 25 g, 5 – 10 % C
Soil
90817-3001
Soil, 25 g, > 2 % C, S
90817-3002
Soil, 25 g, < 1 % C, S
90817-3003
Soil, 25 g, > 2 % C, S
90817-3004
Soil, 25 g, < 2 % C, < 1 % S
Primary substances for calibration
90810
Calcium carbonate, 100 g
90700-1040
Calcium oxalate, 50 g
Please note: Every analyzer requires PC, monitor, balance and some consumables (crucibles, chemicals) which have to be ordered separately
