ELTRA CW-800M

(Please order PC, monitor, balance and consumables (starter-kit, anhydrone, sodium hydroxide, copper oxide) separately)

Measuring ranges at 200 mg sample weight

2)

88100-4042

CW-800M

H2O

0 – 20 % H2O

88100-4041

CW-800M	1x CO2	0 – 70 % CO2 \|
	+ H2O	0 – 20 % H2O

88100-4055

CW-800M	1x CO2	0 – 1 % CO2 \|
	+ 1x CO2	1 – 70 % CO2

Further measuring range combinations on request

Required accessories

PC, Monitor, Balance

71015-1000 Computer with Intel Core i5-8400 Processor, 256 GB SSD; 8 GB RAM; Windows 10 operating system; keyboard; mouse

88400-0584 Monitor, TFT (23.8")

88400-0645 Balance (resolution 0.0001 g)

Required consumables / chemicals for first operations

88500-0014 Starter-kit for 1000 analyses (1000 disposable porcelain boats, 3 quartz boats, 50 g glass wool, 50 g quartz wool)

90200 Anhydrone (magnesium perchlorate), 454 g 1)

90210 Sodium hydroxide, 500 g 1)

90289 Copper II oxide, 100 g 1)

Further options and consumables

Accessories (Hardware)

88200-3800 TIC-Module

72070 Oxygen regulator

72080 Nitrogen regulator

88400-0610 Barcode scanner

Chemicals (fillings for glass and quartz tubes)

90200 Anhydrone (magnesium perchlorate), 454 g 1)

90210 Sodium hydroxide, 500 g 1)

90289 Copper II oxide, 100 g 1)

90330 Quartz wool, 50 g

90332 Glass wool, 50 g

90331 Glass wool, 454 g

92610 Tube of high vacuum grease, 35 g

90840 Quartz sand, 100 g

Boats

36120 Quartz boat, 75 x 16 x 7.5 mm, 1 piece

90160 Disposable porcelain boats 86 x 13 x 10 mm, 1000 pieces

88400-0502 Re-usable inconel boat, 54 x 18 x 13.5 mm, 1 piece

88400-0503 Re-usable inconel boat, 54 x 18 x 9 mm, 1 piece

Tools for operation: Spatulas, tweezers, tongs and other

36216 Combustion boat insertion stick, 1 piece

36217 Combustion boat removing stick, 380 mm, 1 piece

88400-0229 Tweezers (160 mm), curved, 1 piece

88400-0472 Tweezers (145 mm), straight, 1 piece

88400-0475

Set with 6 spatula and 1 tweezers

for multiple weighing procedures

88400-0477

Weighing boat, 1 piece

for weighing and usage of granulates

90145 Tongs for ceramic crucibles and boats, 220 mm, 1 piece

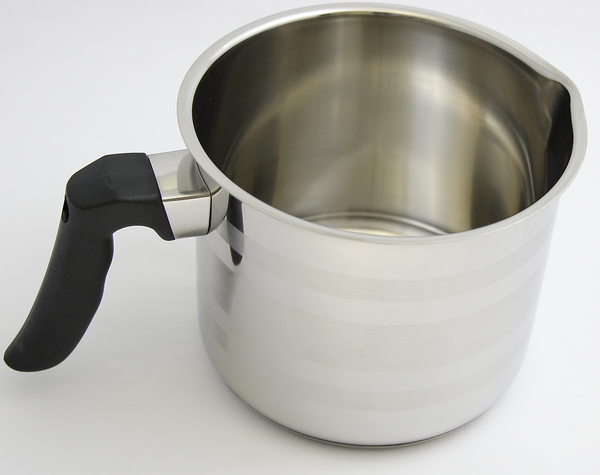

90146 Steel pot for preheated crucibles

Tools for maintenance

46300-8000 Maintenance kit CW-800M

71010

Brush, 16 mm, 1 piece

for cleaning balance from dust

88400-0473

Powder funnel (plastics), 1 piece

for easy filling of chemical tubes

88400-0490 Rubber plug 29 x 35 x 30 mm, 1 piece, for sealing big glass tubes like 09090

88600-0026 Rubber plug 29 x 35 x 30 mm, 1 piece, for sealing big glass tubes like 09090

Calibration materials

Calibration materials may show slight variations depending on the current lot.
To see the current certification please visit www.ELTRA.com.

Limestone

90812-3001 Limestone, 25 g, 0.04 % S; 12 % C

90812-3002 Limestone, 25 g, 0.4 % S; 12 % C

90812-3003 Limestone, 25 g, < 5 % C

90812-3004 Limestone, 25 g, 5 – 10 % C

Soil

90817-3001 Soil, 25 g, > 2 % C, S

90817-3002 Soil, 25 g, < 1 % C, S

90817-3003 Soil, 25 g, > 2 % C, S

90817-3004 Soil, 25 g, < 2 % C, < 1 % S

Primary substances for calibration

90810 Calcium carbonate, 100 g

90700-1040 Calcium oxalate, 50 g

Please note: Every analyzer requires PC, monitor, balance and some consumables (crucibles, chemicals) which have to be ordered separately
